Building a simple antweight R/C combat robot


Building a simple antweight R/C combat robot

In this guide we will show you how to make a simple antweight R/C combat robot using a Sabertooth 2X5 R/C. The 'bot doesn't necessarily have to be used in combat - it is a pretty fun toy to drive around the office too! There is a certain satisfaction you get from driving your own homemade vehicle that you can't get from an imported Walmart toy. The Sabertooth 2X5 R/C will be used to interpret signals from a radio control system, and vary the motor speed so you can drive the robot around. The project requires basic knowledge of electronics (Volts, amps, battery polarity and wiring) and intermediate soldering skills. The project can be completed in a day, with most of the time spent waiting for glue to dry.

Parts list:
Sabertooth 2X5 R/C motor driver
Motors, wheels and chassis
Hobby radio control transmitter and receiver
Battery (at least 6V)
Ceramic capacitors
Misc wire and soldering tools

Overview
As you can see, power will go from the battery in to the Sabertooth motor driver. The Sabertooth has an internal 5V regulator that it will use to power the receiver. The receiver will pick up your control info i.e. the direction you want to drive in, and it will signal that information back to the Sabertooth. The Sabertooth will then process this information, and vary the voltage and direction going to the motors. By varying the voltage going to the motors, you will be able to drive the robot at different speeds and turn it left and right like a tank. In this kit, we are using 4 motors - 2 on each side. We will wire the 2 motors in parallel on each side so they will appear as one motor to the Sabertooth. The 'flip' channel is purely optional - it just reverses left and right steering if your robot gets flipped upside down so you don't have to think backwards.

The chassisOne of the most time consuming things in building robots is constructing the chassis. If you do not have metalworking machinery available to you, you might want to check out Inertia Labs' website. They offer a package where you can get a CNC machined aluminum chassis and 4 geared motors for $99. It will allow you to start work on your robot right away without having to deal with metal shavings embedded in your eyes.

inertia labs kit
This is everything you get in the Inertia Labs kit - the gearmotors are tiny!
Setting up the motorsThis is the only part where you will have to do some soldering. Out of the box, the motors do not come with any suppression capacitors. With a DC brushed motor, if you do not have suppression capacitors the commutator will produce small sparks which will cause radio interference. Adding 0.1uF or 10nF ceramic capacitors to the motor terminals will solve this problem. You can find such capacitors at radio shack or any electronic component store. Digikeypart # 399-4264-ND "CAP .1UF 50V 10% CER RADIAL" is also a good choice. You will need two caps for each motor. Solder one capacitor lead to a motor terminal, and the other lead to the motor's casing. Next, cut and strip some wire to solder to the motor terminals. Put the tires on the wheels and glue the wheels onto the motor's shaft.
motor capacitorsmotor wires

motors
While waiting for the glue to dry, I was reminded of Don King.
Once the glue is dry, you need to put the motors into the chassis. To hold the motors in place, I used Loctite 415 adhesive. It is similar to superglue, but does a better job bonding metal to metal. It takes a long time to cure though so be patient.

The battery
Next up, you need a power source i.e. a battery. To keep things really small and light we used an 800mAh 2s lithium pack. A Sabertooth will run at any voltage above 6V, so you could also use a cheap 7.2V NiMH pack, or even 6 alkaline AAA batteries if you think you can make them fit. Just don't go crazy and dump 18V into these tiny motors else you will burn them out. Remember to get an appropriate charger for the battery chemistry you use. We used aCommon Sense R/C brand pack here, which came with a JST battery connector. These connectors are also sometimes known as P connectors or BEC connectors. Battery connectors are important because they allow you to quickly and safely connect/disconnect power to the robot. Depending on where you buy your battery pack from, you might find this connector already soldered on there for you.
battery
BEC/P/JST battery connectors are available from Maxx Products here . Part number 2832 is the female connector (goes on the battery) and part number 2830 is the male connector (will screw into the Sabertooth). You can also find them at your local hobby shop. Other battery connectors will work, but JST ones are nice and small.
Radio and receiver

optic 6

To remotely control the robot, you will need a hobby radio control transmitter and receiver. These pieces of equipment can be expensive - anywhere from $80 to several hundred dollars. They are an investment that will last many years though, and if you get a good system you will be able to create many radio controlled vehicles down the line. Remember that the radio and receiver must both operate on the same channel, and for ground applications in the USA you should technically use a 75Mhz system not a 72Mhz system. For the purposes of a simple bot like this, a 4 channel transmitter and receiver will suffice. Inertia sells some low end ones. If you can afford it, the absolute best system to get is the 2.4 Ghz Spektrum DX6 or DX7 system with a BR6000 receiver. I used a 6 channel Hitec Optic 6 transmitter and a GWS Naro receiver because that's what we had lying around at the DE office.

Motor driver configurationTo set up the motor driver, use this guide to the DIP switches:
For this particular robot and transmitter, we used the following settings for the following reasons:
Enable mixed mode (for easy steering on one stick)
Disable exponential (the robot was easy enough to control without exponential)
Lithium mode (because we were using a 2s Lithium Polymer battery)
R/C flip mode (so we could use a switch on the transmitter to reverse left/right if the robot flipped upside down)
Enable autocalibrate (quicker and easier than setting the trim on the transmitter)
Enable signal timeout (Helps prevent the robot driving away when there is a loss of signal, and is required for events)

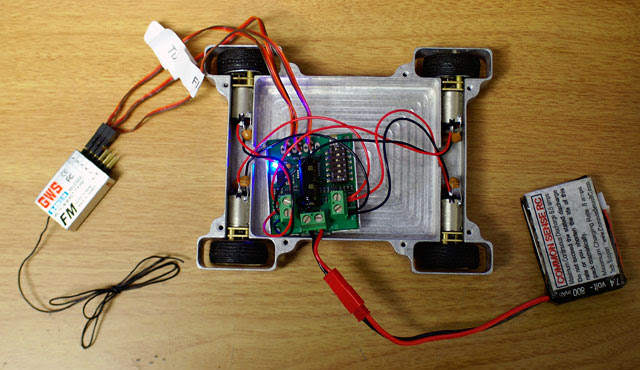

wired
Once everything is wired up as shown in the earlier diagram, it is a good idea to turn on your radio, plug in the battery and do a test run. Make sure up, down, left and right all behave as you want them to. Make sure all motors are turning in the correct direction. When I got to this stage, I found out that 3 of the motors were going one way, and one was going backwards! So I just swapped the two wires on the odd motor and it solved the problem. Other common problems would be having up/down being controlled by left/right on your radio - in which case just swap the receiver channels the servo pigtails are going into. Also check the DIP switch settings on Sabertooth are correct.
battlebot
Now the most annoying part of all: getting everything to fit in that tiny space! Pretend you are playing Tetris and you will be motivated to do a better job. I managed to pull it off with the arrangement shown here.
battlebot
The final touches (and weapons!)
By now you should have a fully functioning 'bot that you can drive around. You might notice however, that the 'bot jerks around and occasionally goes crazy. This would be due to glitches in radio reception. On a 75Mhz system, antenna placement and orientation is very important! Simply coiling up your antenna and shoving it inside the chassis will not give good results at all. Ideally you want the antenna wire as far away as possible from the motor driver and mounted vertically in parallel with your radio transmitter. Although it would be more rigid, it is important that you do not wrap the antenna around a metal rod. The metal rod will act as a shield, and will absorb the radio waves instead of allowing them to resonate in the antenna. Instead, use a non conductive rigid tube, such as a nylon rod. Cheaper solutions can also work!
antenna
Antenna optimization on the cheap

Attaching the antenna holder
The most basic of all weapons is a wedge. You can make a wedge out of a scrap sheet of aluminum, using a vise to bend it. Mark out a strip 2-3" wide and 6" long, and use the vise to hold it in place as you put some kinks in it. You can also chop off the end at an angle to create a spike.
scrap aluminumaluminumbender
You will want to create a very strong bond between the wedge and the chassis, so superglue won't be enough. Screw it down, or a use a strong epoxy.
robot
Done!
